Gauge Widgets

The Gauge widgets available for download are compressed. In order to import them into an ADISRA SmartView application, the user will unzip them and follow the Import Procedures.

Download

Properties

Properties Description

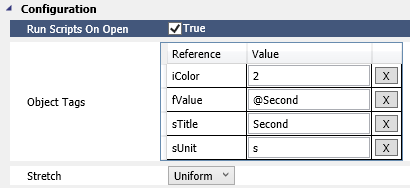

Download Gauge Widget 01EXTPLT
  • iColor: Number or Tag with color
  • fValue: Tag with value
  • sTitle: Text or Tag with title
  • sUnit: Text or Tag with unit

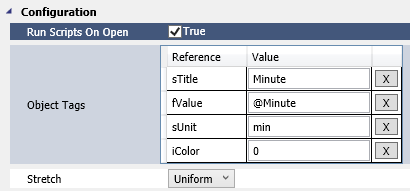

Download Gauge Widget 02EXTPLT
  • iColor: Number or Tag with color
  • fValue: Tag with value
  • sTitle: Text or Tag with title
  • sUnit: Text or Tag with unit
